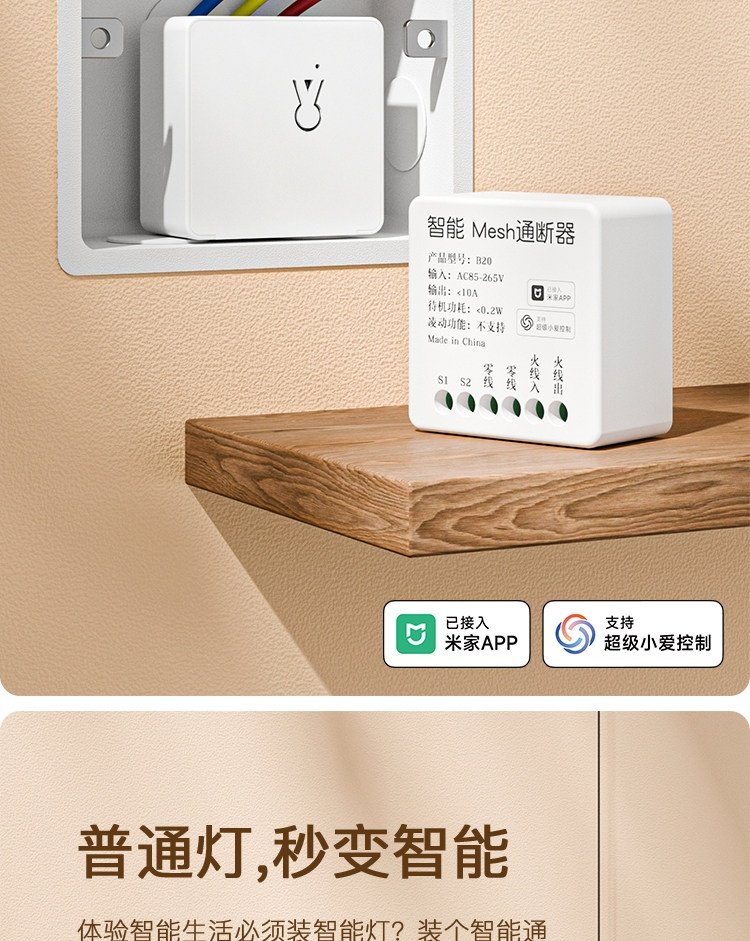

Smart unit to convert traditional electrical switches into a smart control system that allows easy remote management of lighting and appliances via mobile phone. Model B20

Input Voltage: Operates on AC 85-265V, making it perfectly compatible with standard Egyptian household electricity (220V).
Output Current: Less than 10A. Ideally used with lighting, ceiling fans, or small appliances. Avoid connecting it directly to high-current devices such as air conditioners or water heaters.
Standby Power Consumption: Less than 0.2W, a very low power consumption.
Flexible Control Feature: Supported. This feature allows for smart compatibility with traditional wall switches, ensuring that manual switching does not interfere with app control.

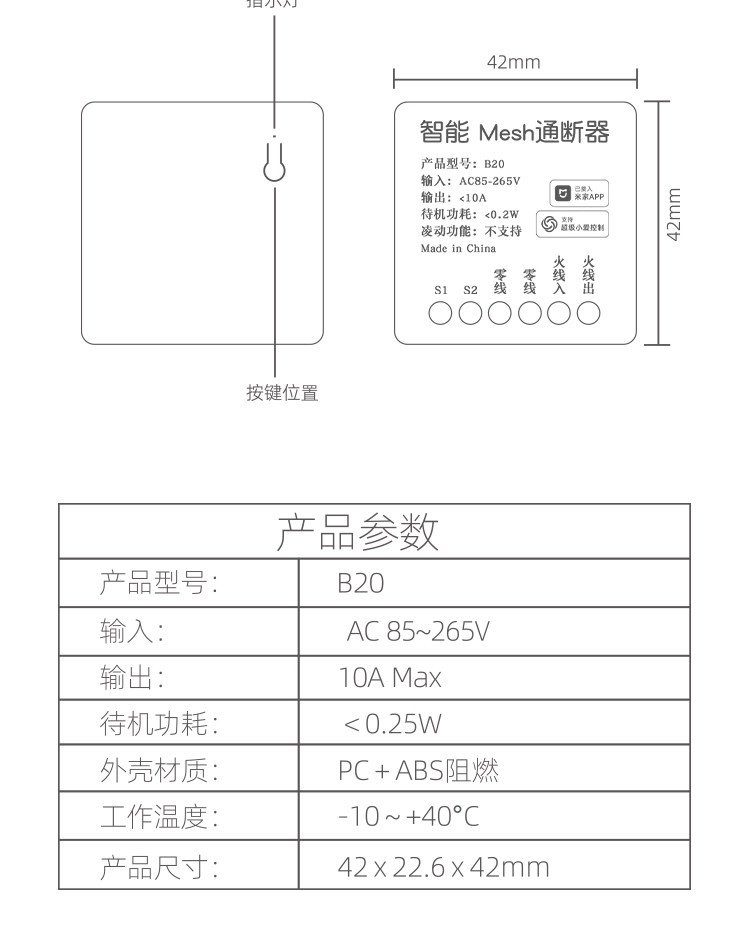

Wiring Ports: The device has 6 connection ports (from left to right):

1. *S1 & S2:* These are for connecting to a traditional (household) wall switch for manual control. 2. *Pin 3 and 4 (Light Line):* Neutral line (cold line). The neutral line from the main power supply is connected here, and the light bulb/device is also powered from this line.
3. Live Input:* Live power line input (phase/main hot line).
4. Live Output:* Live power line output to the light bulb or device to be controlled.
Are you planning to install this yourself for lighting or a specific device? I can help you with the connection steps in detail if you’d like.
